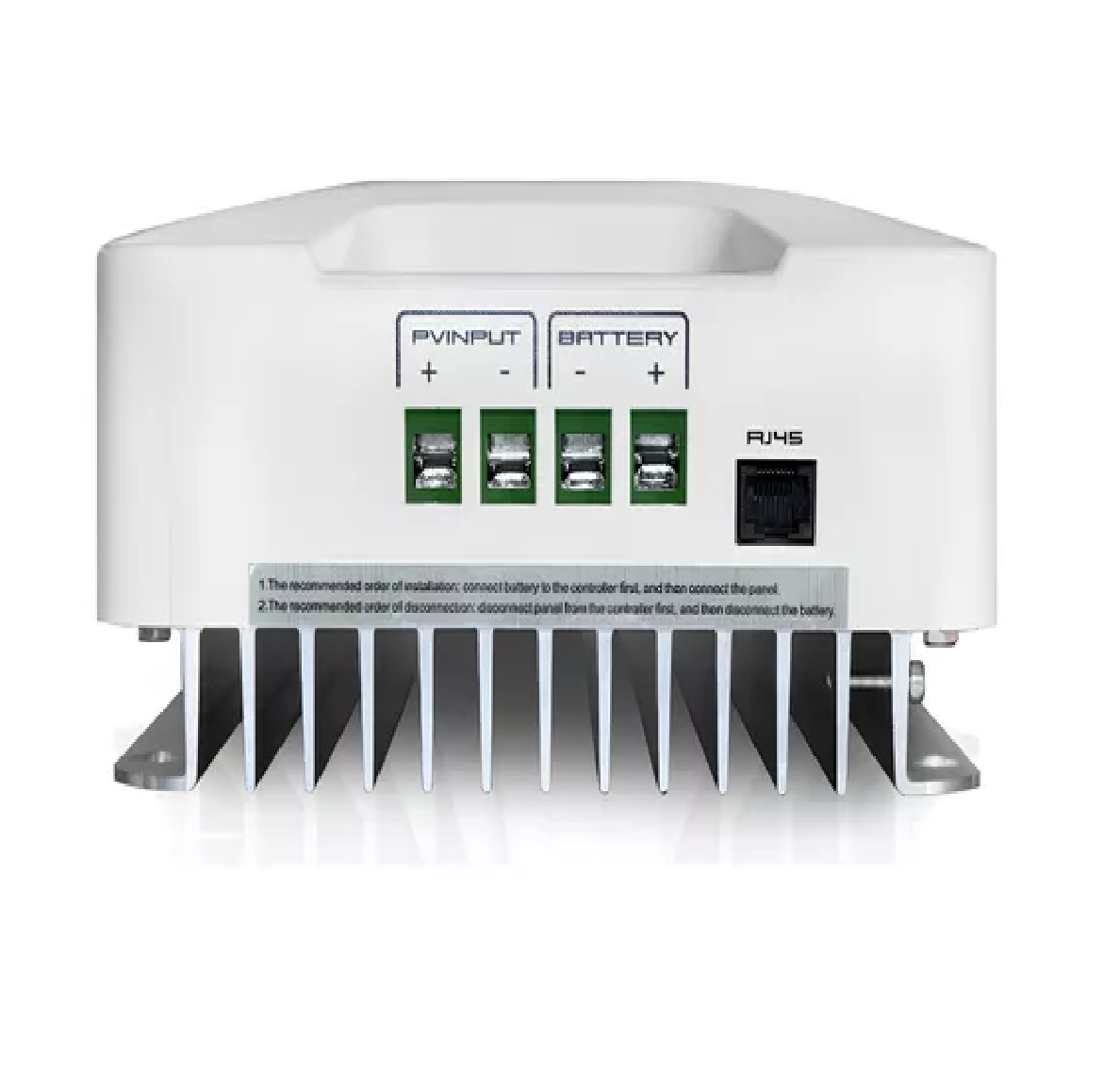

FELICITY High Quality MPPT LCD Solar Battery Charge Controller with 2 years Warranty

A Maximum Power Point Tracking (MPPT) charge controller is an essential component in many solar power systems, especially those that use photovoltaic panels. It performs the critical role of improving solar panel energy collection by tracking and modifying the operating point at which the panels generate the greatest power.

GENERAL TECHNICAL SPECIFICATIONS:

* Model : SCCM6048-II
* Max Battery Current : 60 AH
* Nominal System Voltage : 12V, 24V, 48V DC (Auto-Detect)
* Max Solar Input Voltage : 145V
* PV Starting Voltage: 15V
* Charging Algorithm : 3-Step
* Charging Stages : Bulk, Absorption, Float
* Temperature Compensation Coefficient: -5mV//cell
* Temperature Compensation Range: 0 to 50

PV Array MPPT Voltage Range:

* 12VDC/24VDC/48VDC
* 15-130VDC/30-130VDC
* 60-130VDC

Max Input Power:

* 12V - 825W
* 24V - 1650W
* 48V - 3300W

Protections:

* Transient surge protection: 4500 Watts/port
* Solar high voltage disconnect
* Solar high voltage reconnect
* Battery high voltage disconnect
* Battery high voltage reconnect
* High temperature disconnect Reconnect

Mechanical and Environmental:

* Product size (D*W*H): 27.7 x 18.5 x 10 CM
* Net weight (KG): 4.7 KG
* Ambient temperature range: 0 to +55
* Storage temperature: -25 to 75
* Hidence: 0%-90% RH (non-condensing)
* Enclosure: IP20 (indoor and ventilated)


CERTIFICATIONS:

PRESENT TECHNOLOGIES:

* Compatible with photovoltaic systems in 12V, 24V or 48V
* Maximum load current up to 60A
* Automatic detection of battery voltage (lithium battery voltage needs to be set manually)
* Support lithium battery and various lead-acid batteries, AGM and gel battery
* Built-in smart slot supports MODBUS communication
