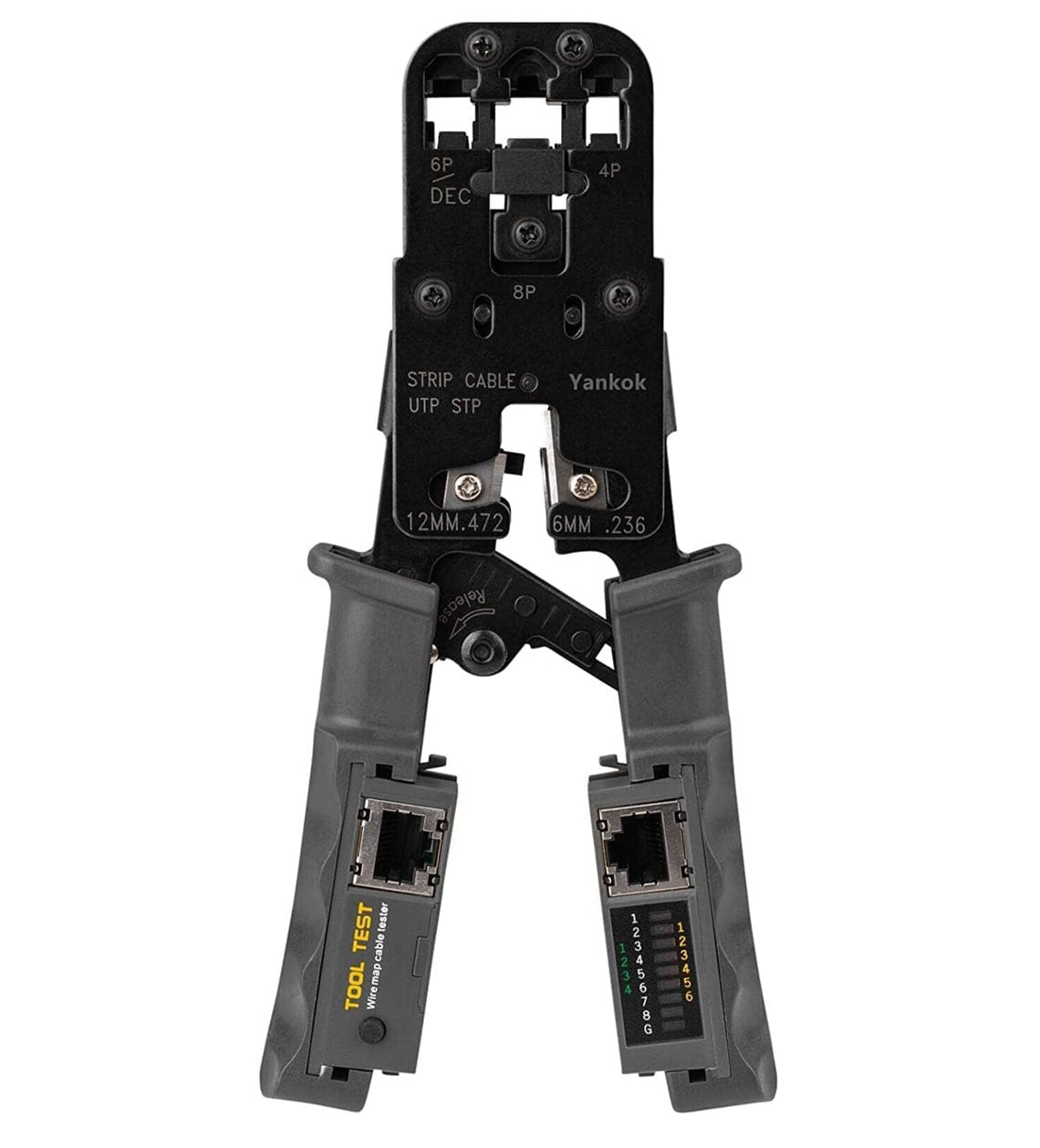

What is a Crimping Tool?
A crimping tool is used to attach connectors to the ends of cables. In most cases, it’s used with RJ45 connectors for Ethernet cables. The tool presses the metal pins inside the connector into the cable wires. This way, it creates a secure and stable connection.
Crimping is both quick and easy. However, it must be done properly. Otherwise, the cable may not function. If, for example, the wires are not pushed in correctly or are out of order, the connection will fail. Therefore, it’s important to use the crimping tool carefully and correctly.

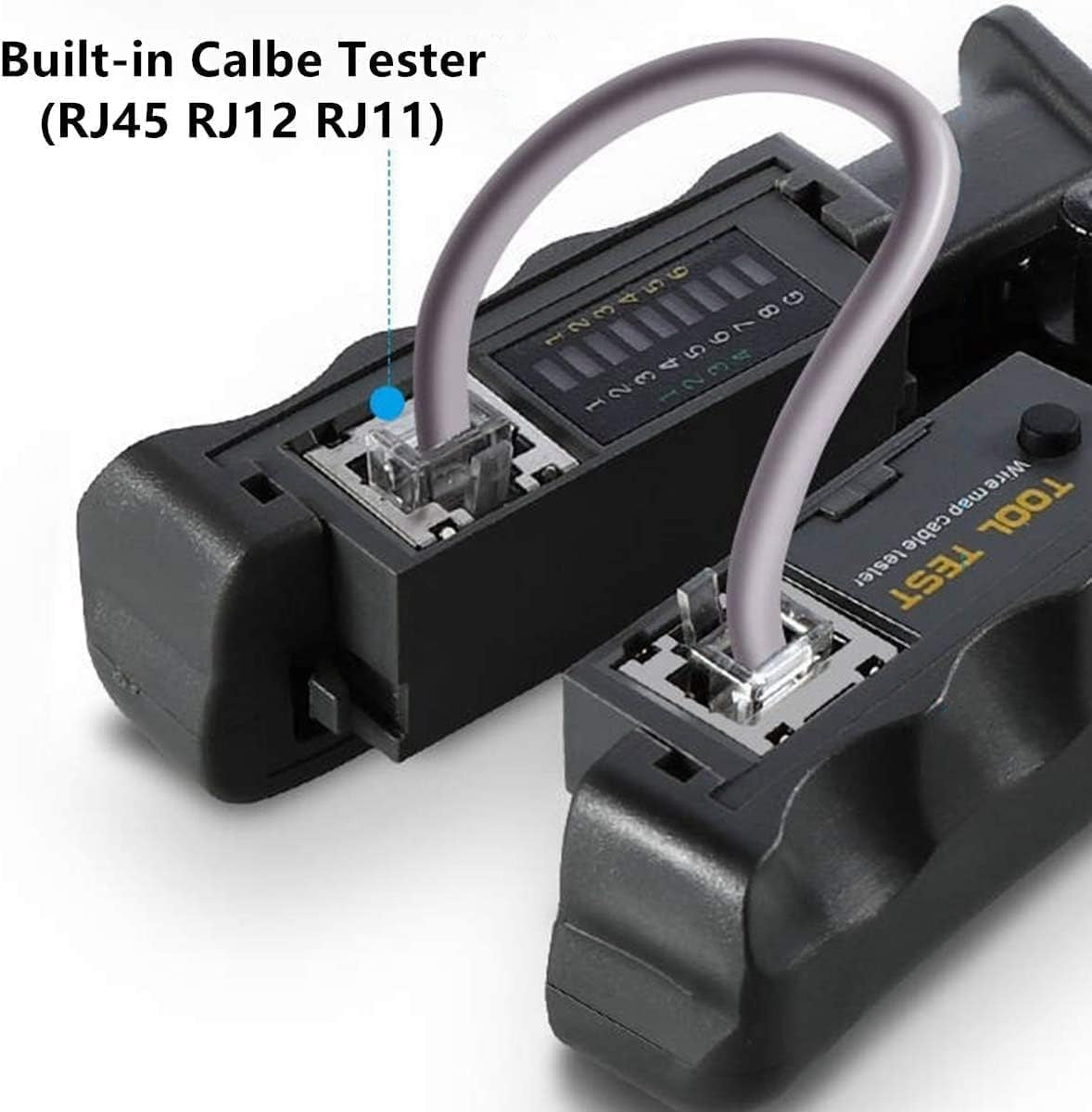

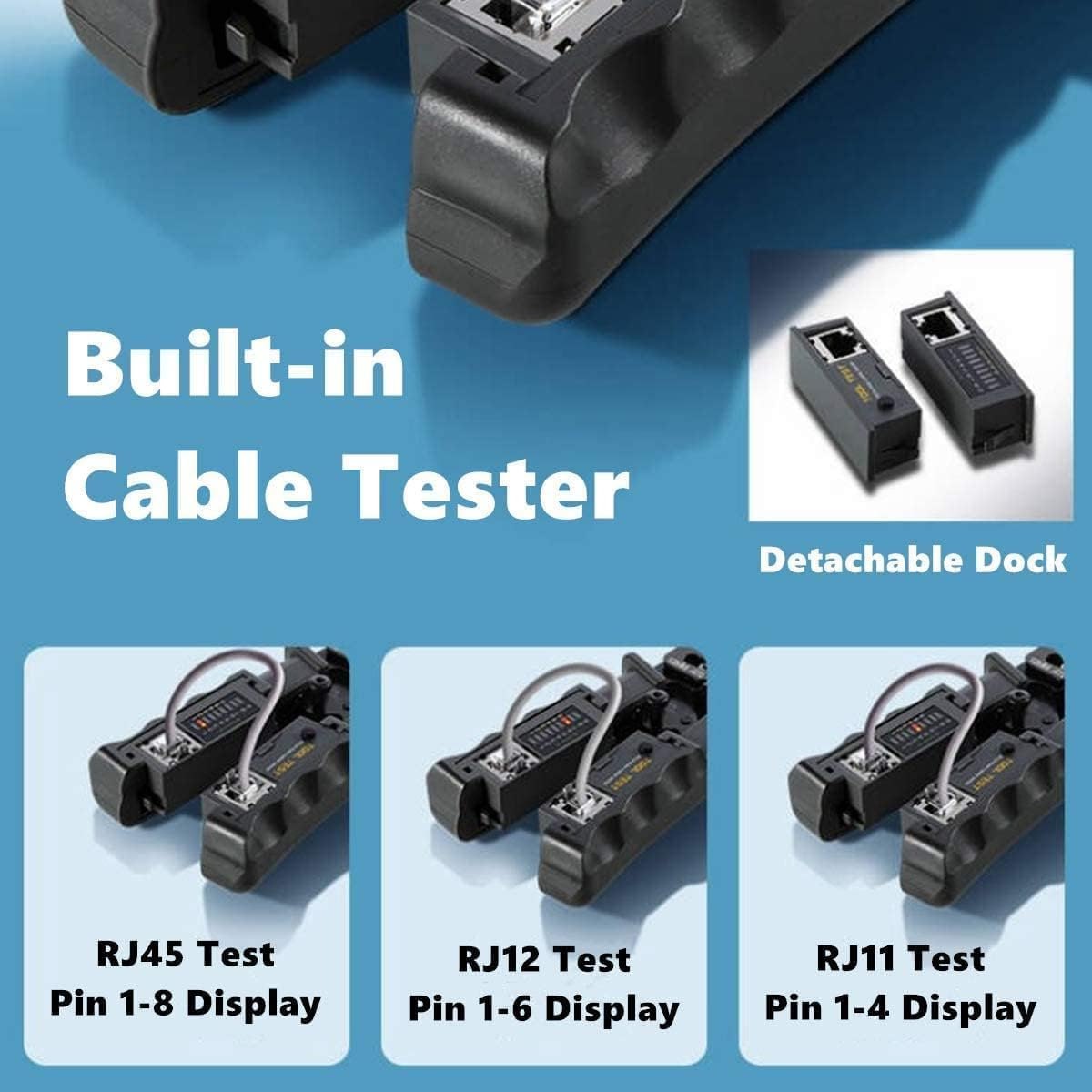

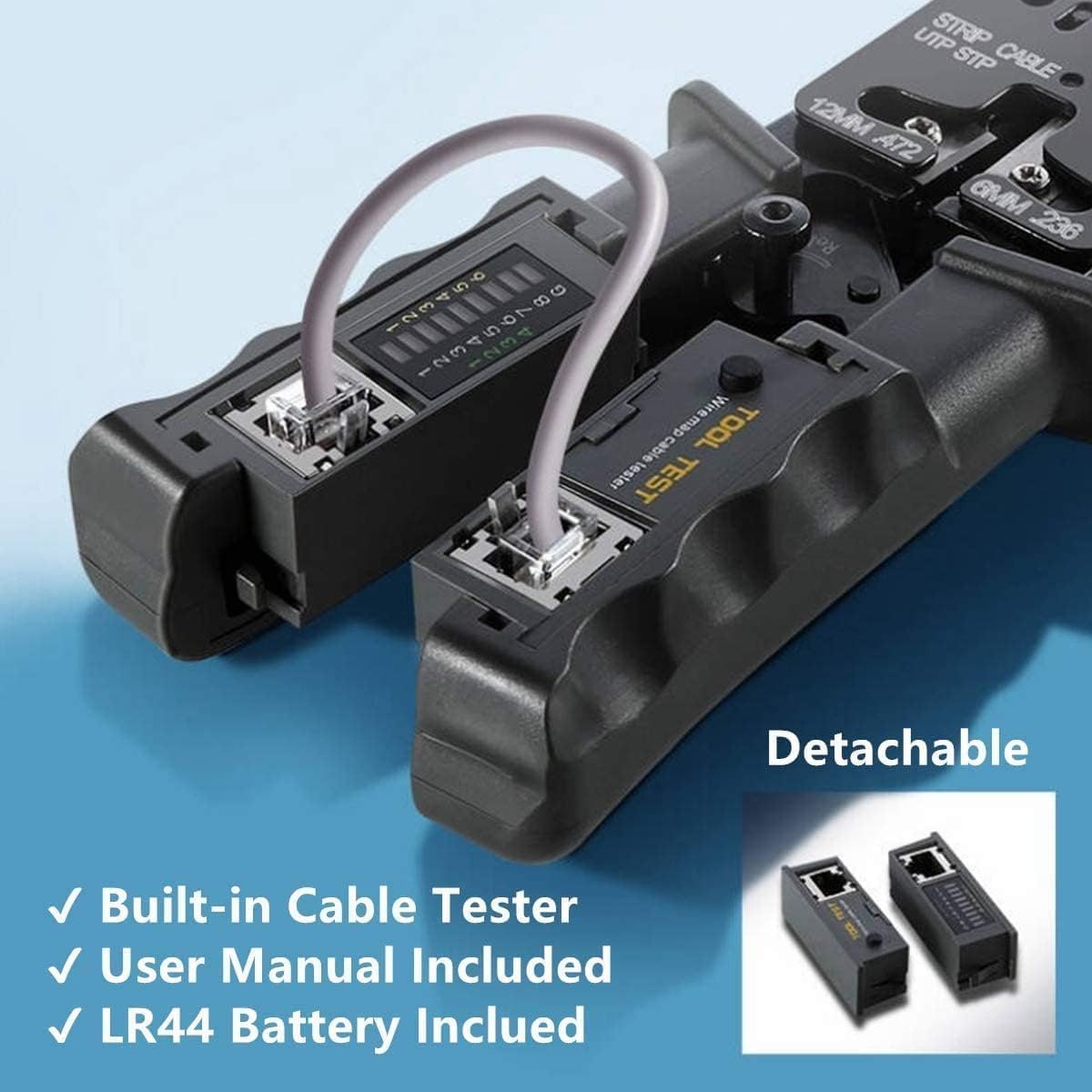

What is a LAN Tester?

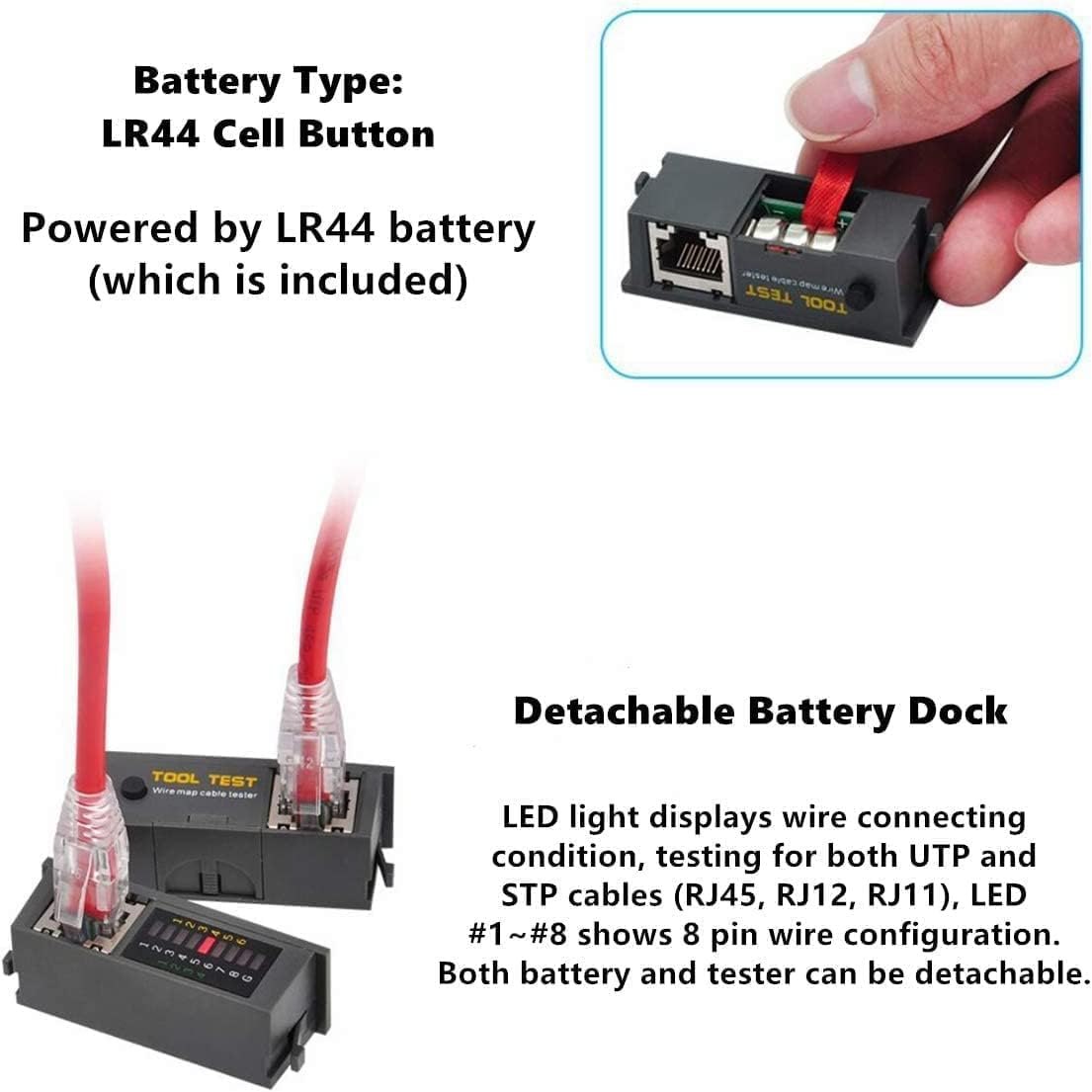

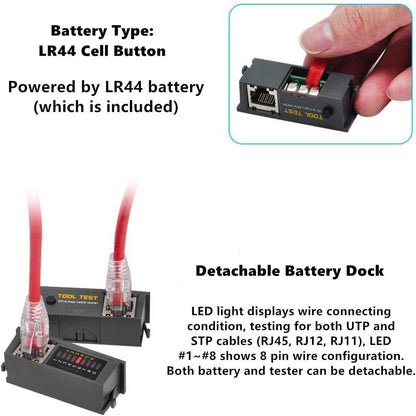

A LAN tester checks if a network cable works properly. After crimping both ends of the cable, you can plug them into the tester. Next, the tester checks if each wire inside the cable is in the correct order. It shows results using lights or a small screen.
If the lights show a straight sequence (like 1-2-3-4-5-6-7-8), the cable is fine. On the other hand, if any lights are missing or out of order, it means there is a problem. In that case, you may need to cut the end off and crimp it again.

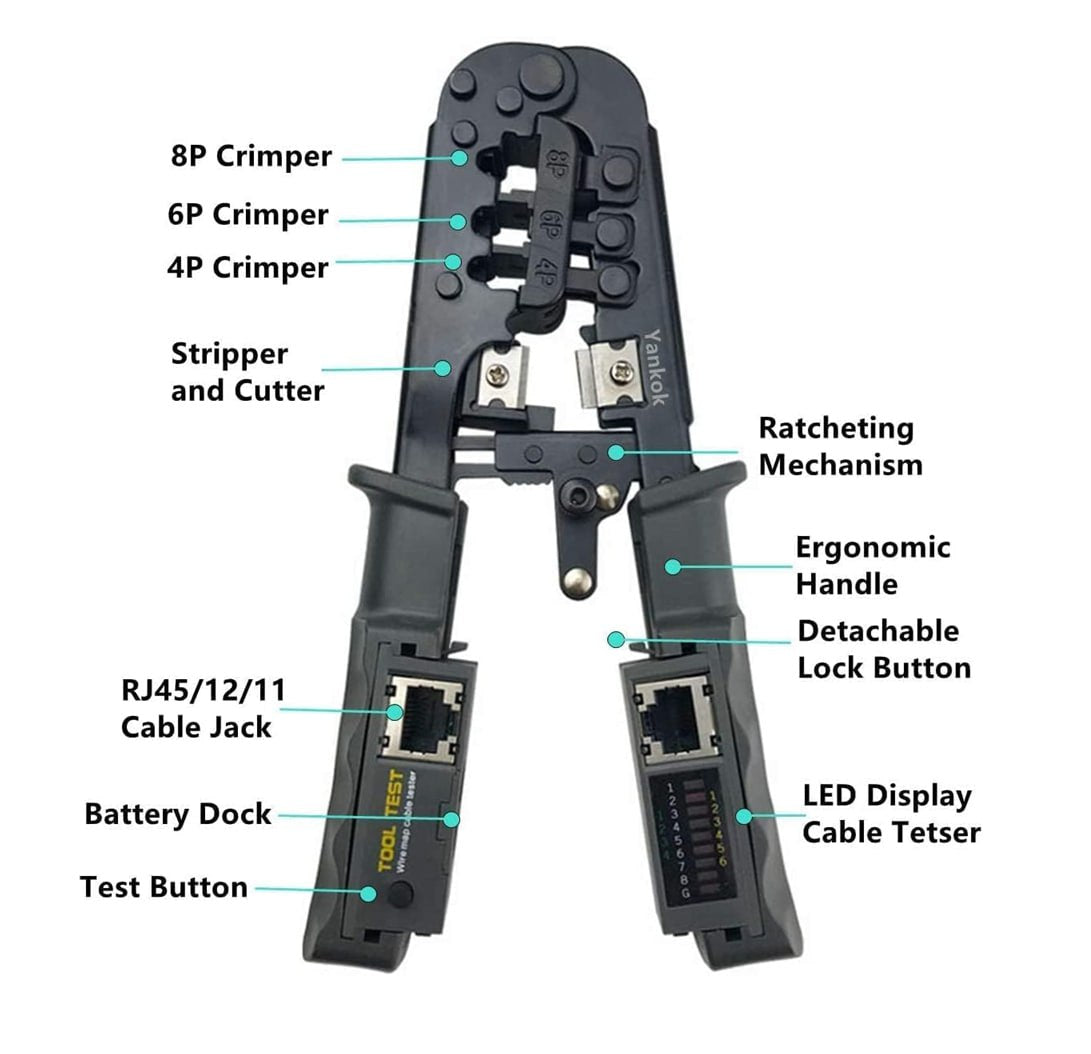

Why Use a Crimping Tool with LAN Tester?
When these two tools are combined into one kit, your work becomes more efficient. Instead of buying or carrying two separate tools, you get both functions in one. Moreover, you can make and test cables quickly without switching tools.
This combo is especially helpful for:
Making custom-length Ethernet cables
Fixing broken cables
Checking cable quality during installation
Saving money by not buying ready-made cables

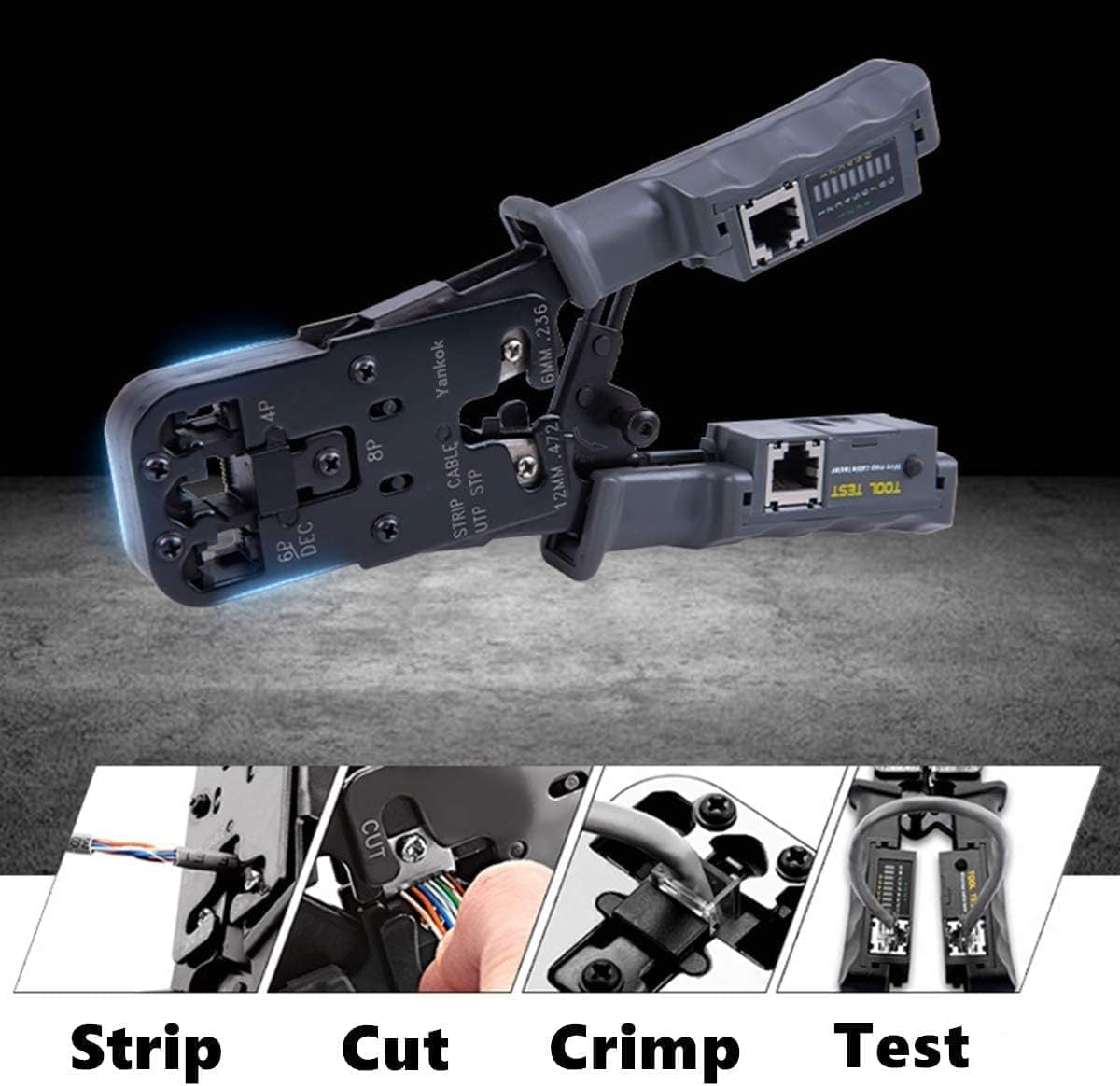

How to Use It:
Using a crimping tool with a LAN tester is simple. To begin, follow these steps:
Strip the Cable: Use the cutter on the tool to remove the outer jacket of the cable.
Arrange the Wires: Line up the colored wires in the correct order (usually T568B or T568A standard).
Insert into Connector: Push the wires into the RJ45 connector.

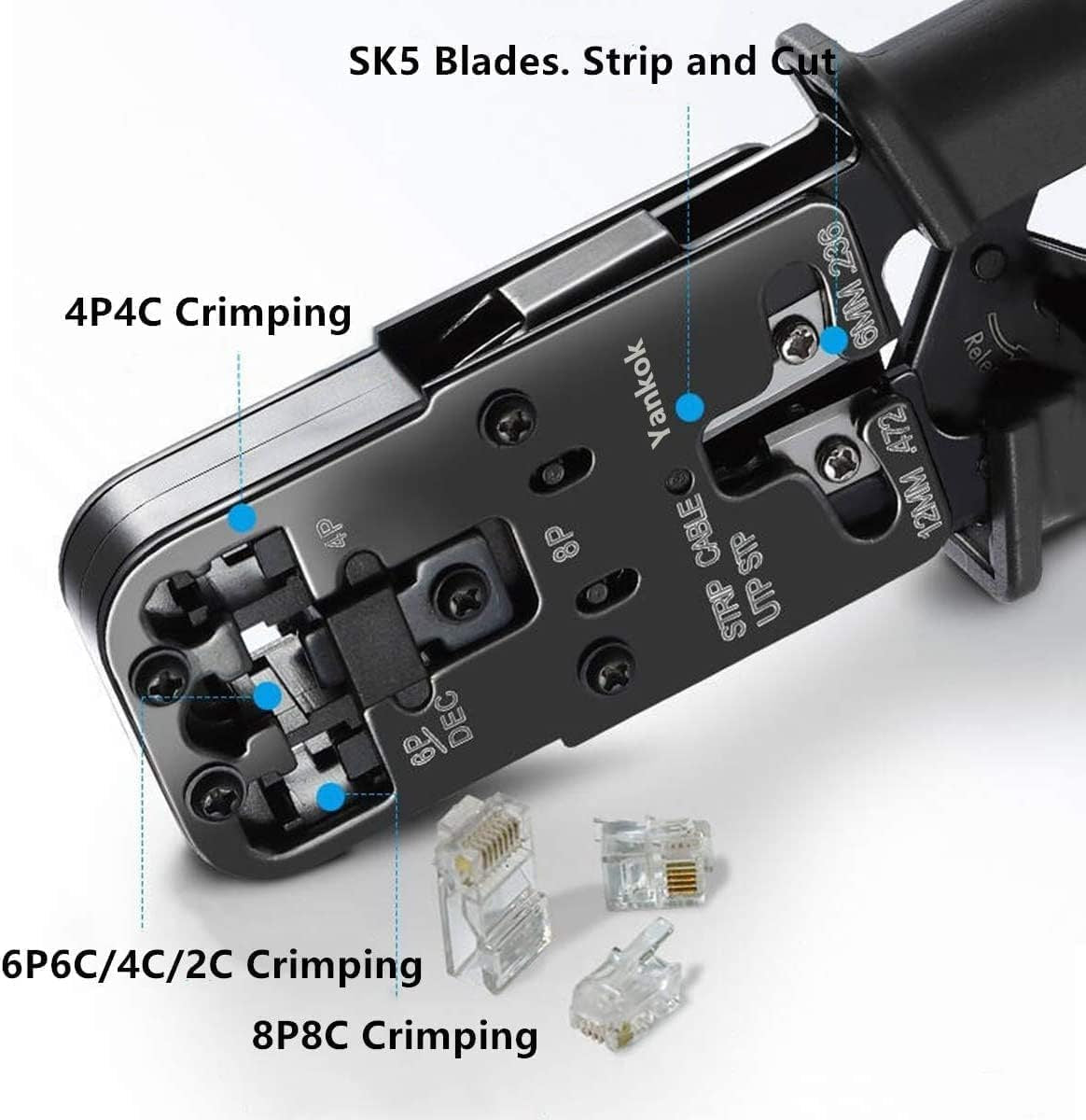

Crimp: Insert the connector into the crimping slot. Squeeze the handles firmly.
Test the Cable: Plug each end of the cable into the LAN tester. Turn it on and check the lights.
If, at this point, the lights show a mismatch, go back and redo the crimping steps.
Tips for Better Results:
To ensure better performance, keep these tips in mind:
Always double-check the wire order before crimping.
Make sure to cut wires evenly so they fit well into the connector.
Use high-quality connectors and cables for better durability.
Be careful not to press too hard when stripping the cable. You might damage the internal wires.
